Description
UPC lookup results for: 6954798524498 | MARANI DPA2448QRT Speaker Management 5 Peq Rms Comp

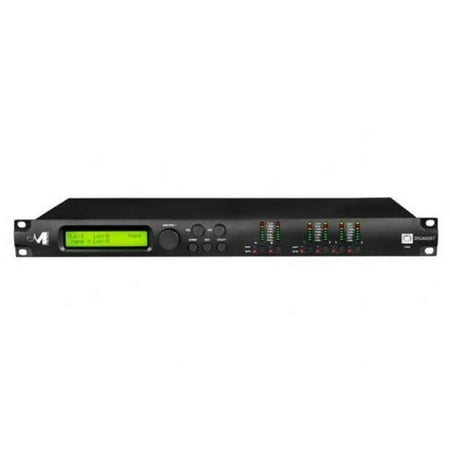

Dpa2448qr/t: it is a 2 input x 4 output speaker processor. The activity of the 2 inputs is displayed by rows of 6 level leds + 1 clip led the activity of the 4 outputs is displayed by rows of 5 level leds + 1 clip led + 1 limiter led. The unit has 2 analog inputs a stereo digital input and 4 analog outputs. Each input has 5 parametric filters and each output has 7 parametric filters. All the input and output filters can be selected to be bell 1st/2nd ord shelvings with -3db at cutting freq. symmetrical shelving with variable q hp/lp with variable q 1st/2nd ord. all pass (90/180deg. Phase rotation at the cutting freq.) bandpass and notch. The outputs x-over section has butterworth linkwitz/reyleigh and bessel filters up to 48db/oct or custom selectable hp/lp up to 48db/oct configurable by the user as cascade of iind ord cells adjustable in freq and q. On outputs are available a rms compressor with selectable ratio up to 32:1 and adjustable soft/hard knee and an output peak limiter with thr in vp or dbu for the loudspeakers protection. The rms compressor and peak limiters thr can range up to -30dbu. Each input and output channels have delays up to 850ms with steps of 22usec. Linking functions between inputs and linking functions between outputs are available. A function is allowing to have ramps closing the output level on parameter changes when the unit is used installation time; this function can be excluded when the unit is used live and it is necessary to perform small changes to the set parameter..On the fly. The pc sw for the remote control is allowing to connect in netup to 32 units and is allowing to show the phase of the filter setting and to adjust graphically the rms compressor and the peak limiter.dpa2448qr/t: it is a special version of the dpa2448qr where the remote control can be selcted between the usb connection on the front panel or the tcp/ip one located on the rear panel replacing the rs485.- SKU: TBALL10711
